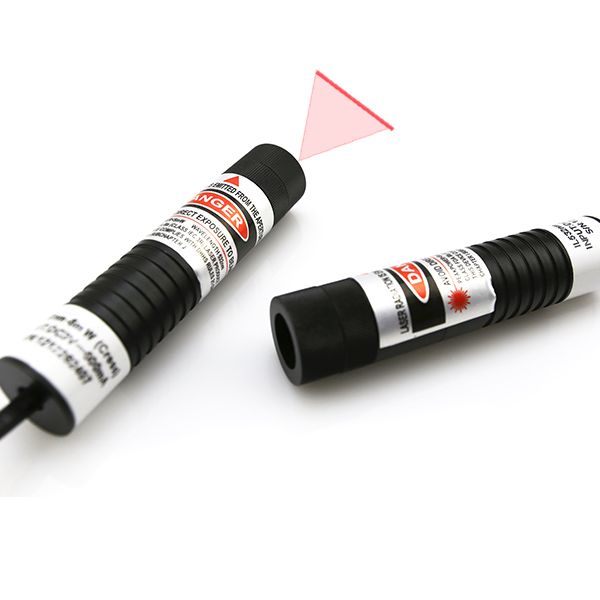

Adjustable Fineness 635nm Separate Crystal Lens 5mW, 10mW, 20mW, 30mW, 50mW Red Laser Line Generators



If users are trying to make clear and fine enough line alignment at various work distances, it is not an easy job to only rely on the use of manual line drawing works. At the same time, on basis of advanced 635nm red laser diode tech and qualified separate crystal lens with different fan angles, it is being made into a practically used device of 635nm red laser line generator. It is performing with high purity and high brightness red laser light from an inner 635nm red laser diode. When compact size tube made 635nm red laser module gets proper installation onto industrial machine or device, without the use of sunlight, it assures highly clear and fine red line alignment at various work distances.

This 635nm red laser line generator applies an import 635nm red laser diode as beam emitting source, which is performing with high purity and high brightness red laser light emission directly from inner laser diode. At the same time, when it gets quite low laser beam divergence of less than 1mrad and special TEM00 laser beam mode, whatever kind of working surface it is pointing, it is always performing with highly fine and straight red reference line projection in continuous use. None of visible red laser light can be observing by human eyes under sunlight, thus high power 635nm red laser module also makes quite satisfied red line alignment for both long distance and high lighting as well.

Whatever kind of working surface it is pointing, being made with the best quality separate crystal lens within 10 to 93 degree, this 635nm red laser line generator assures the most preferred red laser light emission than formal plastic coated lens or plastic coated lens. It is emitting non Gaussian distribution red laser beam, and up to 85% uniformity red reference line projection from beam aperture. No matter it is pointing at close distance or long distance, this 635nm red line laser is performing with the same line brightness from middle part towards both ends. Any time it makes constant red line alignment within 8 to 10 hours, after leaving enough time and space leaving for tube cooling down, it achieves good performance and highly clear red line alignment in all application fields.

With the assistance of laser alignment mounting bracket and extending electric wires, within the maximum installed distance of 3 meters, compact size 635nm red laser line generator always makes sure of the most convenient installation, and easy red line indication onto any vertical or horizontal surface. The genuine laser line alignment allows easy adjustment of laser line fineness and line projecting direction within three dimensions. When it selects correct output power and optic lens degree, after high attention to laser safety issue and avoiding eye exposure to beam aperture, high power red line laser just makes highly secured and fine line alignment in all occasions perfectly.
